Water valves – repair, o-rings, and replacement

WaterValve_2These valves are used on my Coachman Mirada for the water panel and also the water heater bypass.

On another forum,  someone was having problems with the water handles leaking, so I took apart one of my broken ones to see how they came apart and also to see if they could be repaired. i.e. new o-rings, etc.

1) Pull the handle straight back to remove it. They are hard to get off, but they do come off.

2) With the handle off, push on the handle stem, the innards will push out the back of the valve body.

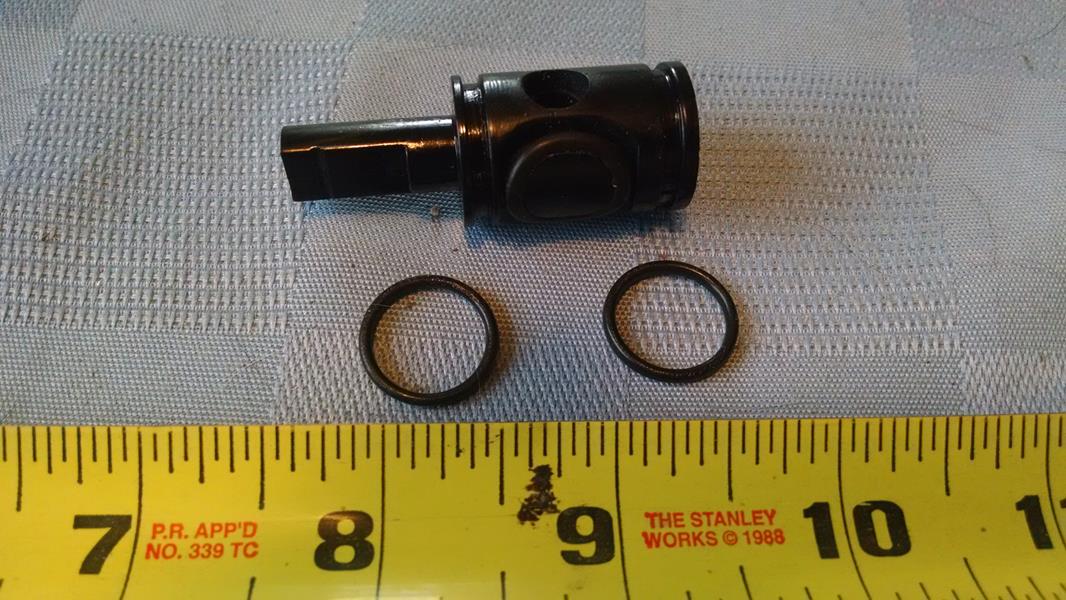

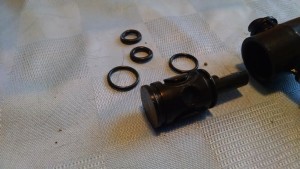

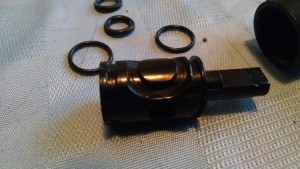

3) Look at the 4 o-rings, they seem to be standard.  The two larger o-rings seal the ends of the operator,  the two smaller o-rings seal the actual valve opening (the part that turns the water on/off.

I haven’t found any source for the valves,  If anyone finds them,  please post a reply

4) When you put it back together, slide the innards back in to the body

5) Push the valve handle on the stem. It only goes on one way, make sure the indents on the handle line up with the indents on the body (the indents keep you from turning the valve more than 90 degrees.

You may need a helper to hold the innards from being pushed out of the body.

The valve handle should be snug, Pushing / pulling on the handle should NOT move the innards back and forth. If it does, the handle isn’t seated all the way on the stem.

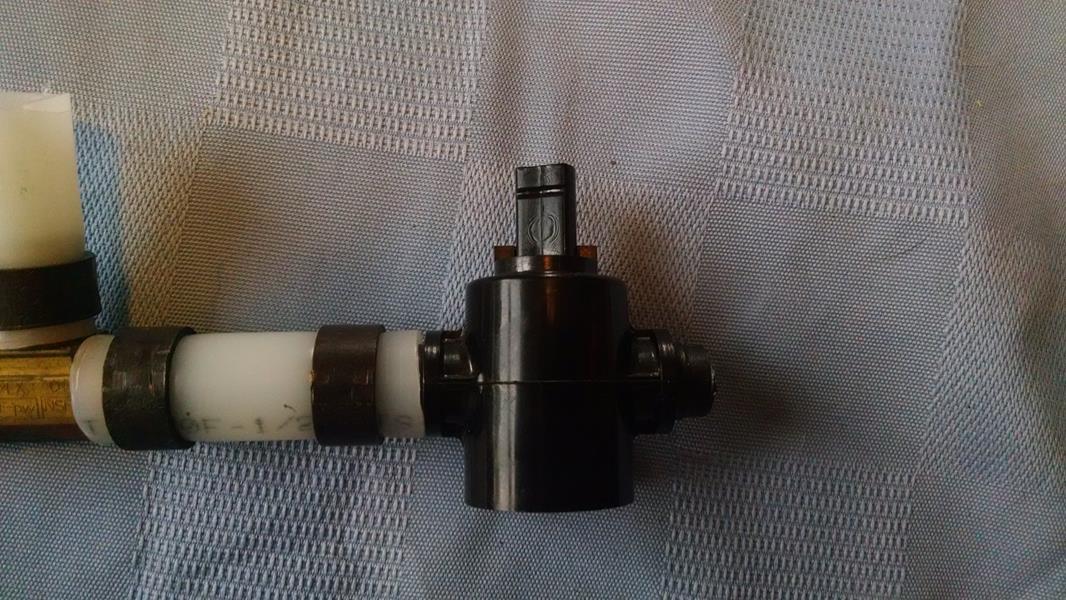

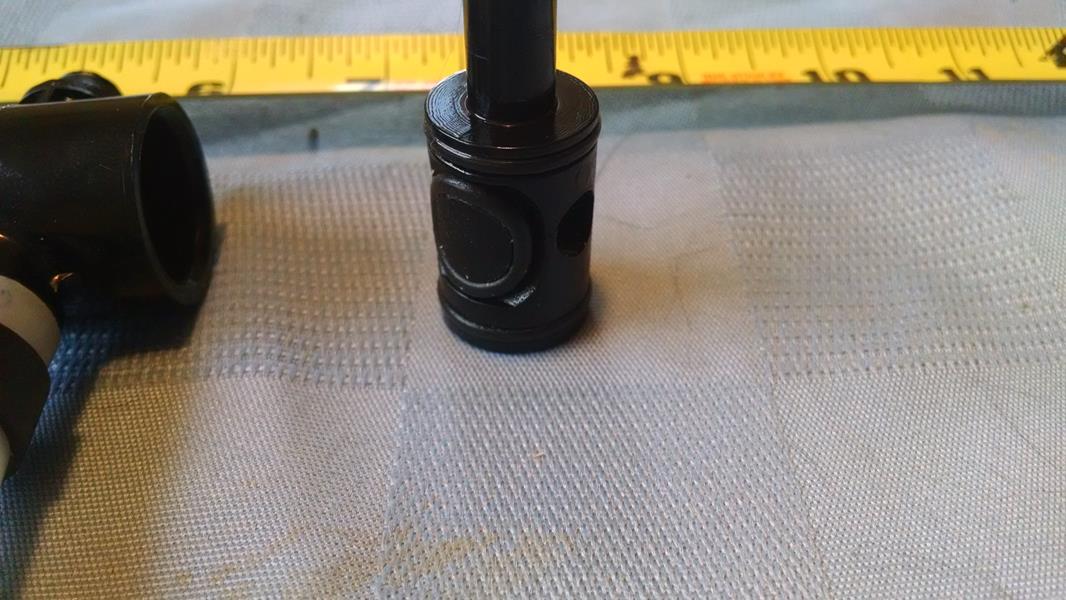

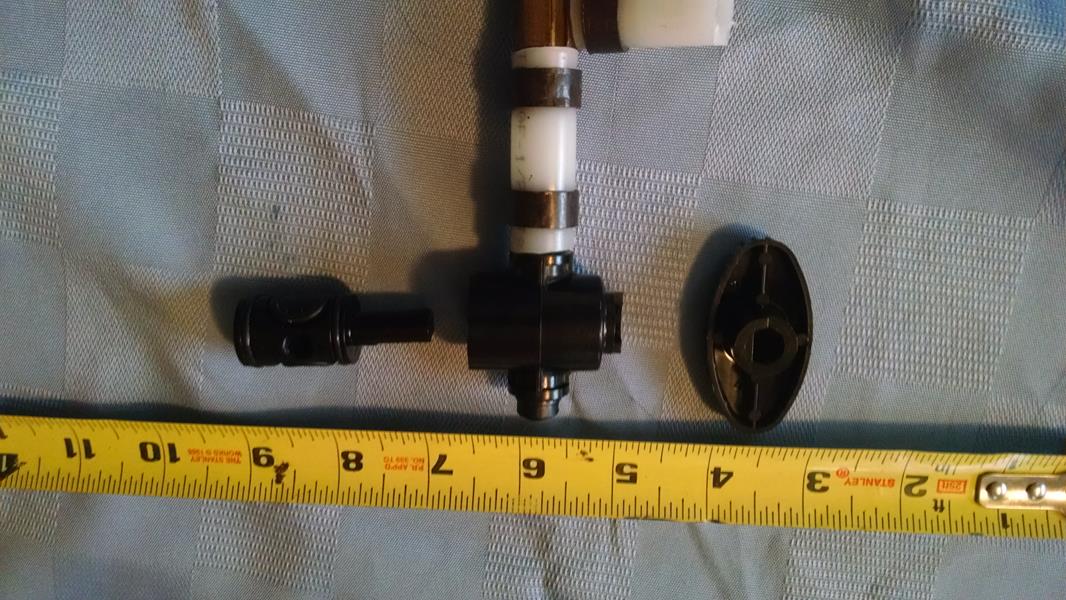

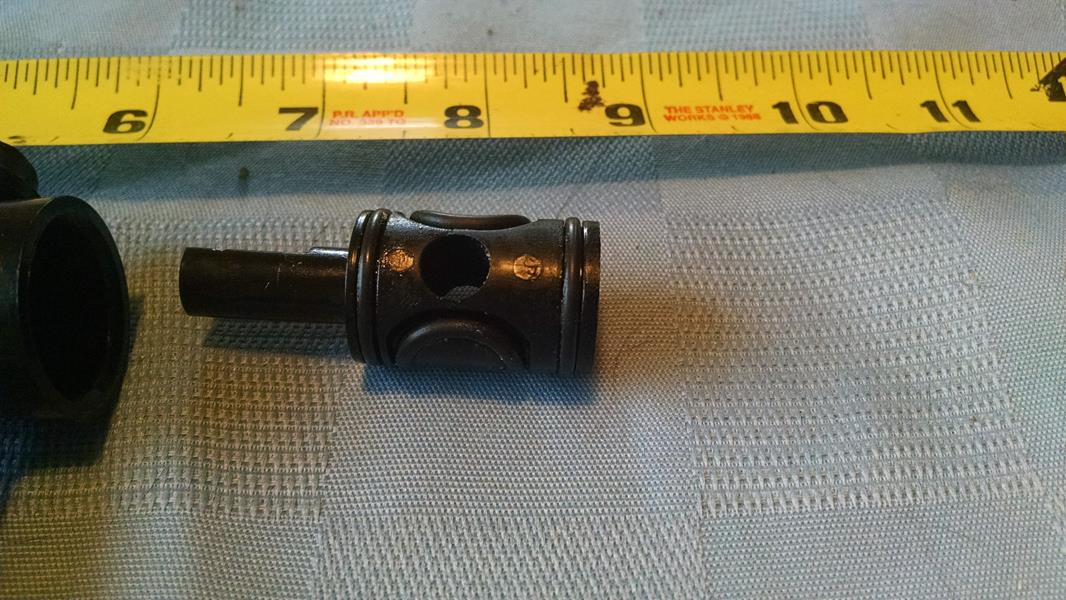

Photos of the valves taken apart.
WaterValve_3

WaterValve_2

WaterValve_1

WaterValve_5

WaterValve_4

WaterValve_8



WaterValve_9
